Block Microwave Oven Ring Segment

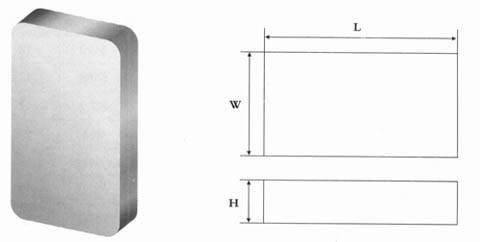

Item No

L (mm)

W (mm)

H (mm)

MMFB-0001

270

89

25

MMFB-0002

185

54

20

MMFB-0003

152

102

25.4

MMFB-0004

150

100

25

MMFB-0005

150

50

20

MMFB-0006

100

100

25

MMFB-0007

100

75

20

MMFB-0008

100

50

20

MMFB-0009

85

65

18

MMFB--0010

60

40

20

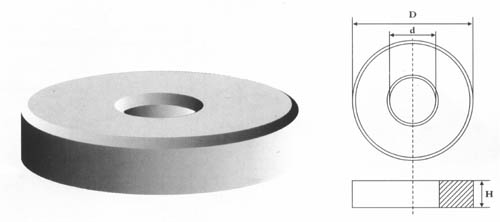

Item No

D (mm)

d (mm)

H (mm)

MMFO-0001

55

21

12.2

MMFO-0002

58

21.5

11

MMFO-0003

57

21.5

11.1

MMFO-0004

60.5

21.5

11.1

MMFO-0005

50

19.4

11.2

MMFO-0006

56.8

21.8

13

MMFO-0007

55.5

18.2

13.6

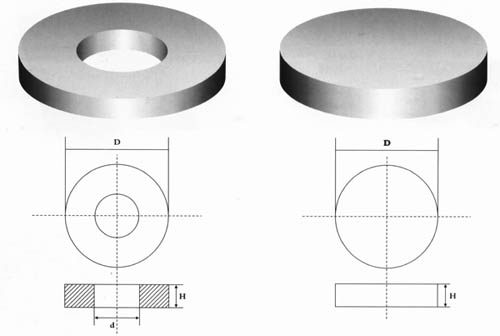

Item No

D (mm)

d (mm)

H (mm)

MMFR-0001

100

50

20

MMFR-0002

120

60

20

MMFR-0003

134

57

15

MMFR-0004

154

73

19

MMFR-0005

156

80

20

MMFR-0006

180

95

20

MMFR-0007

200

110

20

MMFR-0008

220

110

20

MMFR-0009

220

110

25

MMFR--0010

260

140

25

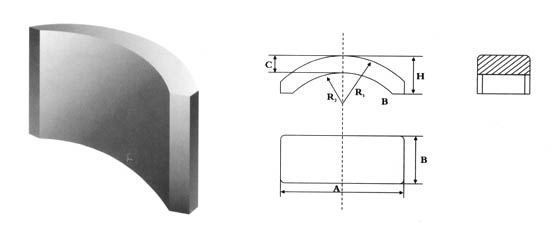

Item No

R1
(mm)

R2
(mm)

A
(mm)

B
(mm)

H
(mm)

C
(mm)

Angle

MMFS-0001

41.15

33.02

45.72

81.78

15.74

8.13

--

MMFS-0002

21.2

16.26

39.5

34.92

15.75

4.95

140

MMFS-0003

33

28.6

54.2

47

18.9

6.3

--

MMFS-0004

106

98

65

26

--

6.1

45

MMFS-0005

17.95

15.15

24.2

19

--

2.8

90

MMFS-0006

15.9

12

26

30

10.85

3.9

--

MMFS-0007

26.4

21.8

48.5

35

19

4.6

140

MMFS-0008

17

28

22

60

--

6.5

45

MMFS-0009

32.35

25.55

59

28

21.6

6.8

--
